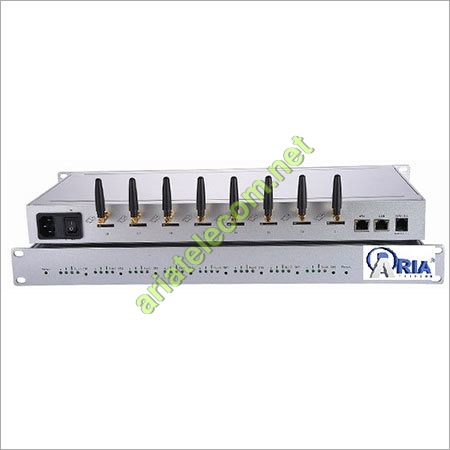

8 Port GSM Gateway

8 Port GSM Gateway
8 Port GSM Gateway
Product Code : 13
Product Description

Aria Telecom 8 port gsm Gateway to IP Gatewayis a very efficient solution to connect GSM/CDMA SIM with your EPABX or Dialer, product is very populer in call center & office use .The gsm Gateway is designed for comfort, ease-of-use & cost effective communication with your clients. It is not only used in call centers but very usefull in office communication to reduce the cost. Aria Telecom gateway is compatible with Asterisk & other SIP PBX.

Feature

  • 8G GSM Channels, Easy to Conduct SIM Rotation Locally
  • GSM: 850/900/1800/1900MHz; CDMA: 800MHz; WCDMA: 850/900/1900/2100MHz
  • Built-in Bandwidth Saving, Signalling & RTP Encryption
  • HTTP API for SMS integration
  • Auto Update SIM Number and Balance Check
  • No Balance Alarm

Specification

Voice Processing

  • Protocol: SIP v2.0, RFC3261
  • Codecs:G.711A/U law, G.723.1, G.729A/B
  • Silence Suppression
  • Comfort Noise Generator(CNG)
  • Voice Activity Detection(VAD)
  • Echo Cancellation: G.168 with up to 128ms
  • Dynamic Jitter Buffer
  • DTMF: RFC2833, SIP Info
  • Programmable Gain Control
  • NAT: STUN, Dynamic NAT, Static NAT

Mobile

  • SIM Interface: 1.8v, 3.0v SIM Interface
  • Frequency Range:
  • GSM: 850/900/1800/1900MHz; CDMA: 800MHz
  • WCDMA:850/900/1900/2100MHz
  • USSD Encoding: Unicode/ASCII
  • HTTP API for SMS
  • Polarity Reversal
  • PIN Modify
  • Carrier Auto/Manual Selection
  • CID/CLIR
  • BCCH
  • SMS Send and Receive
  • SMS to Email
  • Call Waiting/Call Back
  • Call Forward
  • GSM Audio Coding: HR, FR,EFR, AMR_FR,AMR_HR

Software Features

  • Calling Type:
  • Mobile to VoIP, VoIP to Mobile
  • SIP Trunk and Trunk Group
  • Caller/Called Number Manipulation Rules
  • SIP Codes Mapping
  • White/Black List
  • PSTN Hotline
  • VoIP Hotline
  • Password authentication for incoming and outgoing calls
  • Abnormal Call Monitor
  • Call Minutes Limitation for Ports/Single Call
  • Auto SMS/Call Generation
  • Balance Check
  • Low Balance Alarm
  • Auto Update SIM Number
  • Random Call Interval
  • Abnormal Call Monitor
  • SIM Rotating by
  • SIM Run Time
  • SIM Balance
  • Bandwidth Saving
  • Signaling & RTP Encryption

Network

  • Static IP, DHCP Client, PPPoE
  • Network Protocols:
  • TCP/UDP,TFTP, FTP, RTP/ RTCP, SSH,ARP,RARP,ICMP Ping, NTP, HTTP, DNS
  • Static/Dynamic ARP Request

Maintenance

  • Web/Telnet Configuration
  • Configure Backup/Restore
  • Firmware Upgrade by HTTP/TFTP
  • Factory Reset
  • CDR (10000 Lines CDRs Storage Locally)
  • Syslog/Filelog
  • Ping and Tracert
  • Traffic statistics: TCP,UDP,RTP
  • VoIP Call Statistics
  • PSTN Call statistics: ASR,ACD,PDD
  • Voice Dialogist with Loopback
  • GSM Network Dialogist
  • IVR Customization
  • Auto Provisioning
  • SIP/RTP/PCM Capture

Physical Interface

  • Mobile: 32 GSM Channels
  • SIM Card Slots: 128
  • Ethernet Interfaces:
  • 2*10/100 Base-T, RJ45
  • LED Indicators: Power, RUN, Signal Strength Indicators
  • Console:
  • 1* RS232 115200bps

Environmental

  • Power Supply:
  • 100-240VAC,50-60Hz
  • Power Consumption: 68w
  • Operating Temperature: 0 ℃~ 40 ℃
  • Storage Temperature: -20 ℃~80 ℃
  • Humidity: 10%-90% Non-Condensing
  • Dimensions(W/D/H): 440×270×75mm
  • Unit Weight: 4.7kg

Application

  • Call Center
  • BPO
  • Office Communication
  • Inter Branch Connectivity
  • Customer care
  • Help Line
